Strain Gauging

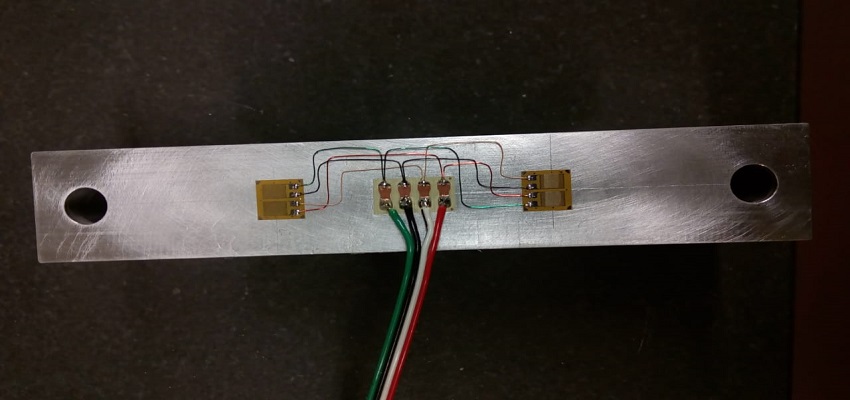

A strain gauge or gage is a device used to measure strain on an object.The most common type of strain gauge consists of an insulating flexible backing which supports a metallic foil pattern. The gauge is attached to the object by a suitable adhesive, As the object is deformed, the foil is deformed, causing its electrical resistance to change. This resistance change, usually measured using a Wheatstone bridge, is related to the strain by the quantity known as the gauge factor.

NVTS offers end-to-end strain gauging services. Our services start right from strain gauge selection, surface preparation, gauge bonding, cabling, gauge protection, cable routing and connection to the data logging unit and acquire quality strain data.

Our Expert engineers have experience installing strain gauges in a variety of applications ranging from component to Vehicle level. Every application requires a unique understanding of the strain measurement requirements and the application environment.

NVTS Provides below Strain Gauging Services.

• Experiments Stress Analysis.

• On-Site Strain Gauge Installation.

• Vehicle level strain gauging on hotspts.

• Drilling method to measure residual stress.

• Component level Strain Gauging on hotspts.

• Strain Gauging for Torque Tension Test On Fastners.

• Axle strain gauging to measure vertical and axial force.

• Strain Gaugig for Torque Measurement- Propeller Shafts.

• Custom Force Sensing Bolts and Studs with centre drill method.

• Strain Gaugig for Force Measurement- Axle Housing, Suspension.

• Customised Sensor Design Development and Calibartion against Force.

• Strain Gauging for Customsed Sensors- Bump Stopper,TieRods,Leaf and Coil Springs.
